55

P

P

a

a

s

s

s

s

b

b

o

o

o

o

k

k

s

s

w

w

i

i

t

t

h

h

V

V

e

e

r

r

t

t

i

i

c

c

a

a

l

l

F

F

o

o

l

l

d

d

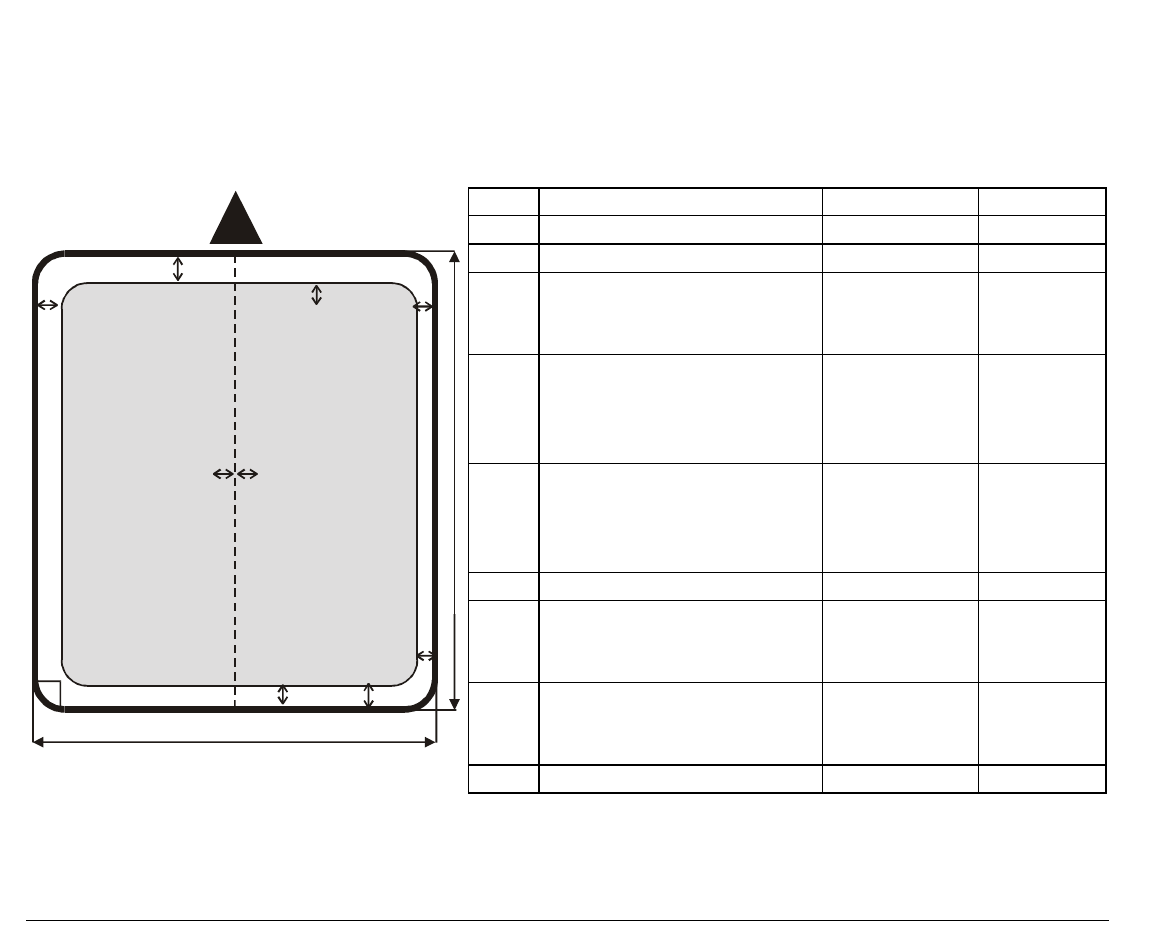

Dimension

Maximum

Minimum

A Passbook width 213 mm 127 mm

B Passbook length 210 mm 99 mm

C Distance for the dot

position nearest to the left

or right edge

- 3,0 mm

D Distance from the top

edge of the document to

the top edge of the first

printed line

- 6,6 mm

E Distance from the bottom

of the last printed line to

the bottom edge of the

document

- 6,6 mm

F Outer corner radius 9,35 mm -

G Distance from the fold to

the first character

position beside the fold.

- 5,1 mm

H Distance from the fold to

the first character

position beside the fold.

- 5,1 mm

K-L Short Page Offset - 0,0 mm

Insertion direction

B

C

C

GH

L

H

ABCD

D

ABCD ABCD

A

E

F

K

Print Area
